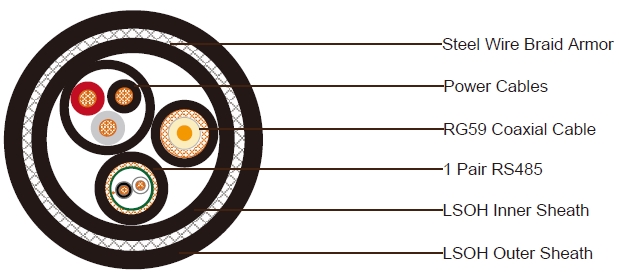

1x RG59+ 3xPower Cable +1x2x24AWG RS485 SWB LSZH Sheathed Composite Cable
1x75Ohm RG59 Coaxial Cable
Conductor |
0.58mm Solid copper conductor |
Insulation |
Polyethylene. Thickness 1.56mm |
Shield |
Braid of bare copper wire. Coverage ≥ 85% |
Sheath |
PVC sheath. Nominal outer diameter 6.2mm |
Sheath Color |
Black |
1 Pair 24AWG RS485
Conductor |
7/0.2mm Stranded tinned copper |
Insulation |
PE material. Thickness 0.6mm |
Insulation Color |
Black and white |
Shield 1 |
Aluminium polyester tape with 24 AWG stranded tinned copper drain wire |
Shield 2 |
Tinned copper wire braiding |
Sheath |
PVC sheath. Nominal outer diameter is 6.0mm |
Sheath Color |
Black |
3x2.5mm² Power Cable
Conductor |
2.5mm² Stranded tinned copper wire |
Insulation |
XLPE. Thickness 0.7mm |
Sheath |
LSZH compound. Nominal diameter is 11.0mm |
|
|
|
|
| |
|
|
